Ok. So here is my DIY on how to remove the cowl and the various components to gain access to the back of the Si engine to remove the valve cover, top O2 sensor and the downpipe. I do not take responsibility if you damage your car in attempting to reproduce this procedure. Always take your time when working on your car, take time to examine the car and the various pieces to see how they are put together and come apart, and proceed carefully as to not break anything. Take pictures along the way to reproduce your work and put it back together. The following are the steps I used to take apart Happy wrenching.

Tools:
10mm, 12mm and 17mm sockets
3" and 6" extension bars for your sockets.
Masking tape
Flat head screwdriver or clip puller

Remove wipers:

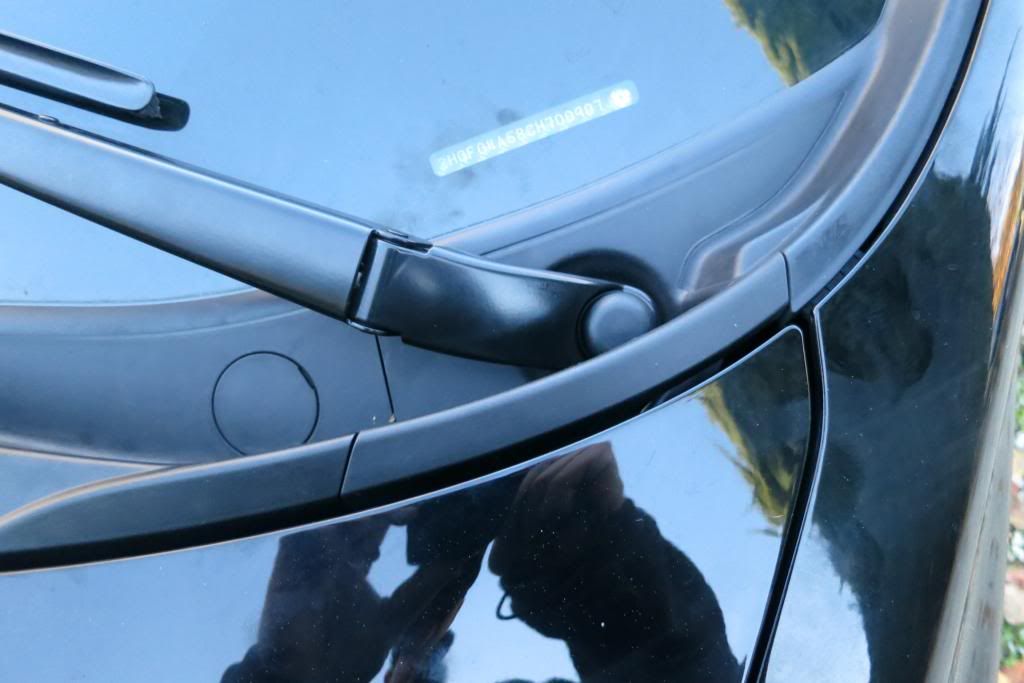

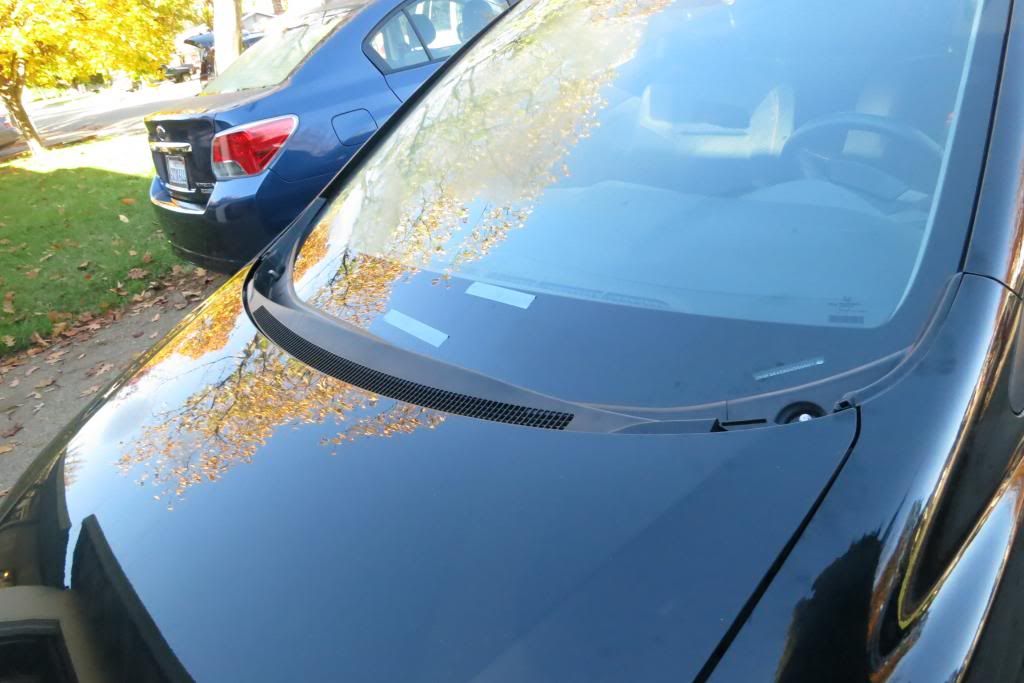

1) Mark the position of the windshield wipers with some masking tape. You'll need to take the wipers off and they sit on splined posts and you'll want them as close to their original position as you can get them when you put everything back together.


2) You'll need to remove the panel that prevents you from getting free access to the wiper (#1). It's just clipped in, so with your hand just pull up on it with a little wiggle and it should come off. Next, just remove the plastic piece (#2) covering the base of the wiper. You can pry it off with your fingers or use the flat head screwdriver to aid it.

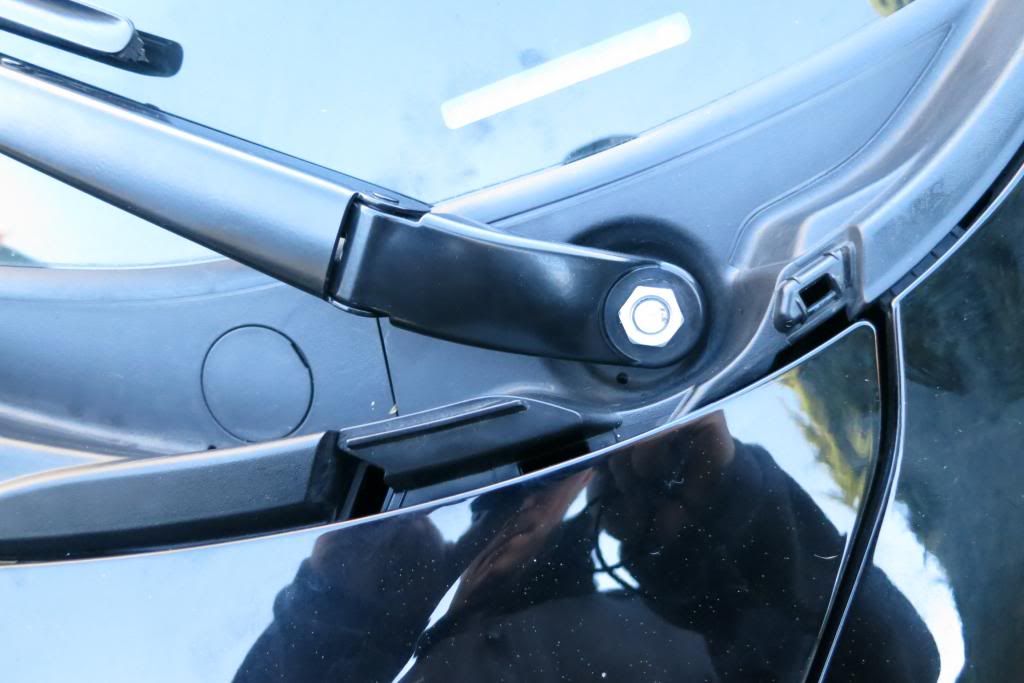

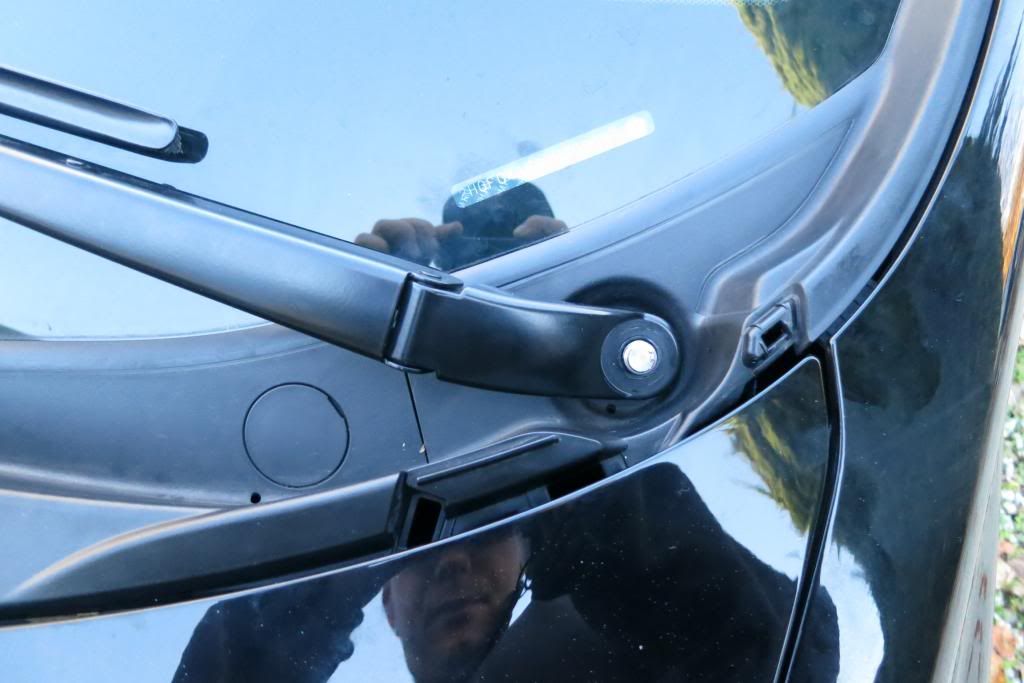

3) Unscrew the 17mm bold holding the wiper on.



4) Take the wipers off. You'll want to make sure you've marked their position with masking tape as part of step 1. This is tricky so manipulate the wipers. I tilted the wiper up, and pulled upward at the base, while wiggling back and forth. I also wiggled along the axis of the wiper. You'll need to pull and wiggle and the wiper will pull off. It doesn't take a lot of pressure here, so if you're feeling like you're really pulling on it, you'll need to apply your pressure differently.


Note: until this point, you really don't need to have the hood open, in fact it's easier if the hood is closed. The only thing that you may need to pop the hood for is those #1 pieces blocking your way to the wiper bolts.


Corner cowl piece removal:

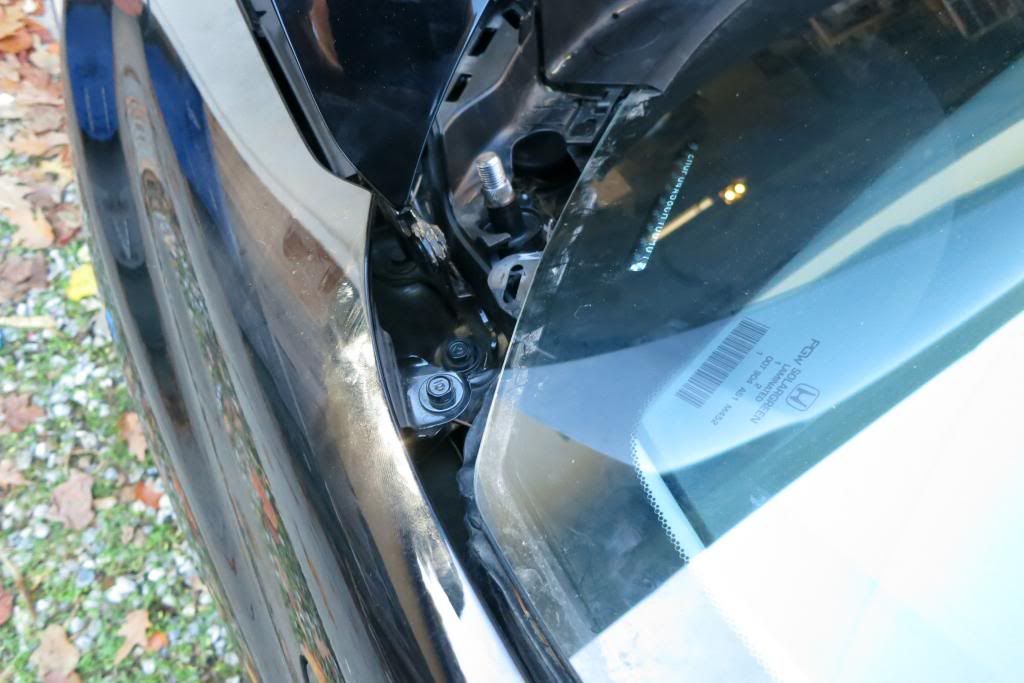

5) You'll want to open your way to the strut mounts. There is a rubber cover that you'll need to remove. Just pull it out.

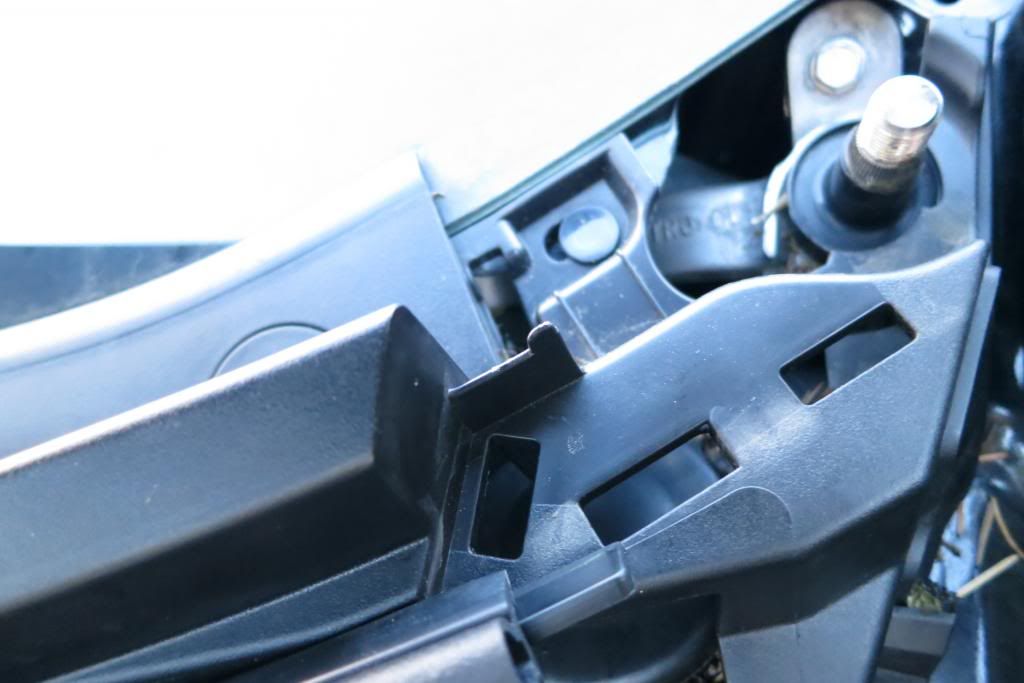

6) You're going to need to take the part of the cowl that covers the bottom corner of the windshield. There are a few clips you gain access to by removing the rubber in the last step. There are those clips, plus a blind clip that holds the piece down. You'll need to take your time with this. There is some pulling, twisting and maneuvering of the part to pull it from the corner of the windshield. This was the hardest piece for me to comfortably remove and toughest to re-install. Pull this part and you've exposed the bottom corners of the windshield.


To give you an idea where those clips are on the main part of the cowl there by the strut mounts.


Main cowl piece removal:
7) With the corner pieces of the cowl removed, you're on to the main part of the cowl. There are 5 clips you'll need to pull (circled in yellow). You'll want to use your clip puller or a flat heat screwdriver to pull these guys out. They are the crappy flimsy flat-topped clips, be careful you don't destroy them unless you have some replacements.

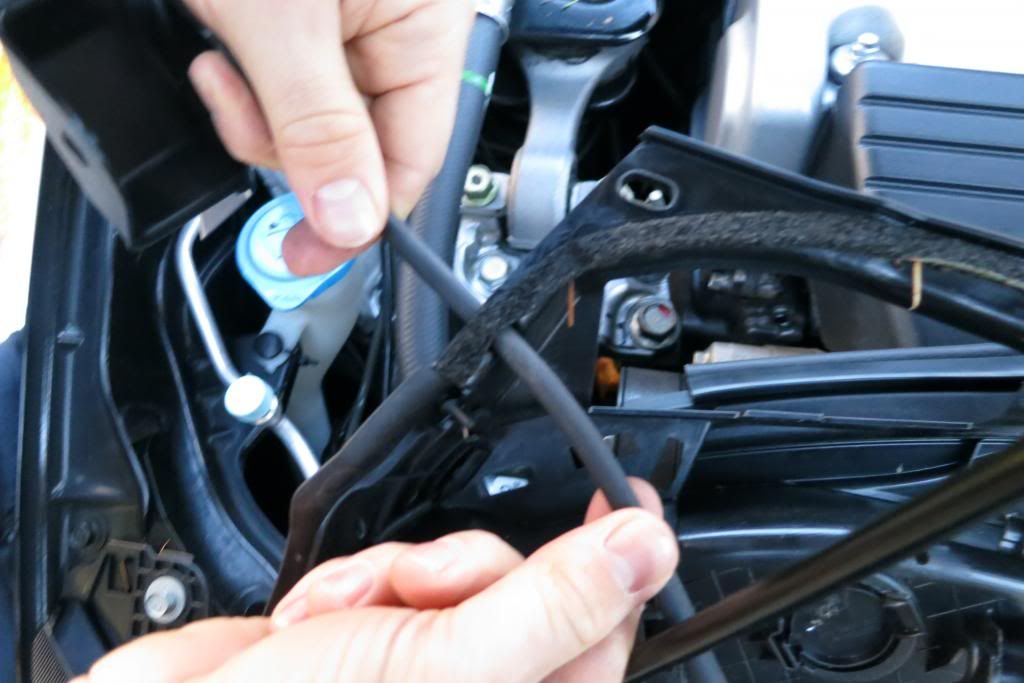

8) Simply slide the cowl to the front of the car. You don't need to tilt it or anything special like that, it slides forward freely. You'll need to disconnect the hose that runs to the sprayers because it runs into the cowl and removing the line helps get that big piece of plastic out of the way.


Heat shield removal:
9) There is a heat shield that is under the cowl that is in your way now. Using the 10mm and 12mm sockets and the extension bars, remove the 9 bolts that hold that in place. There are 6 bolts (12mm) next to the strut mounts and3 (10mm) along the top. You'll need to use the extension for those three. The middle one, you'll need the longer extension, or a combination of two extensions.

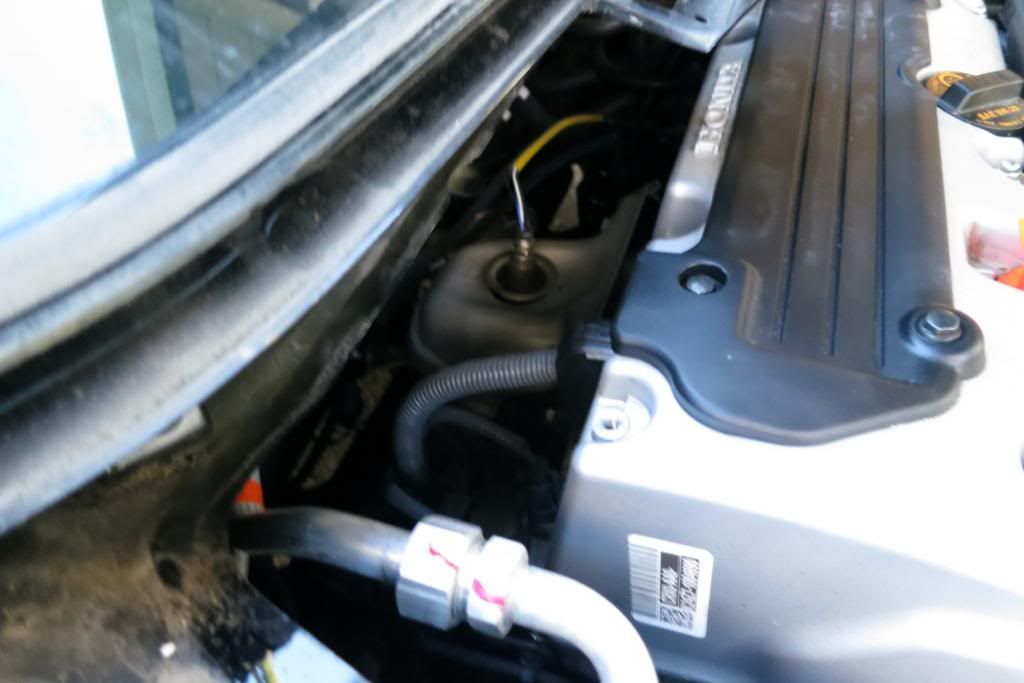

With the cowl and heat shield removed, you now have free access to the valve cover, the top O2 sensor and the downpipe connection at the exhaust manifold.


·
